GEO S1210A
Sanway
NON
powered
Description

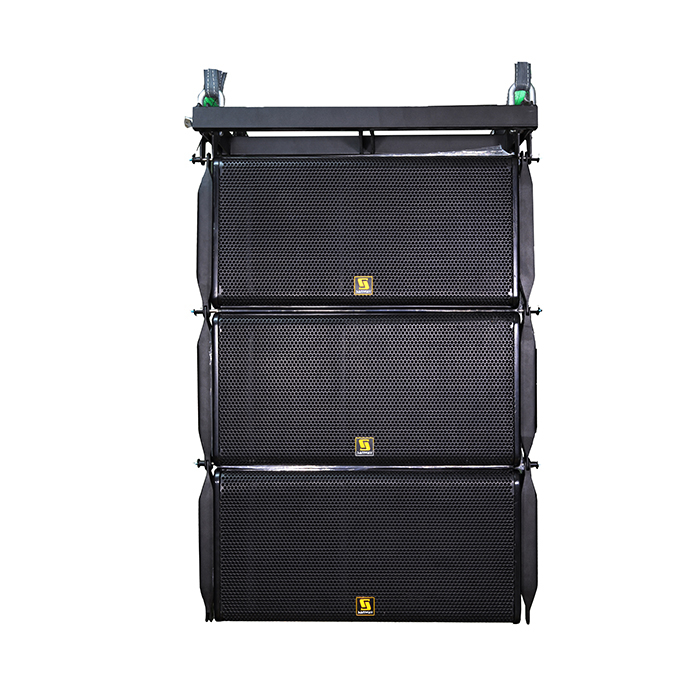

GEO S1210A is a scalable highoutput line array speaker sound box. With a narrow Q value of the point sound source speaker, the use of patented HRW hyperbolic reflection wave source technology, can put many units GEO S1210 speakers into a line array. GEO S1210's beautiful and ergonomic design is for all the strong sound of the application, its design can be used for fixed installation and mobile performances, it is the high cost efficiency of the strong sound system. The powered version is mounted one Sanway customized amplifier module D2L-TWO, which is 2x500w at 8ohms ; 2x900w at 4ohms 2 channel plate amplifier with DSP function, and could power 2 bi-amped speakers.
Application
Specification
| Model | GEO S1210A |
| Drivers | HF: 1x 3” voice coil LF: 1x 12”neodymium driver |
| Frequency Response (±3 dB) | 53 Hz - 19 kHz |
| Sensitivity (1w/1m) | 97dB SPL |
| Nominal Impedance | LF: 16ohms, HF: 16ohms |
| Power rated(rms) | 750 watts |
| Peak Power handling | 3000 watts |
| Usable range @-6dB | 50Hz – 20kHz |
| Shape | 10° Trapezoid |
| Powered Version | Sanway Customized Powered Module |

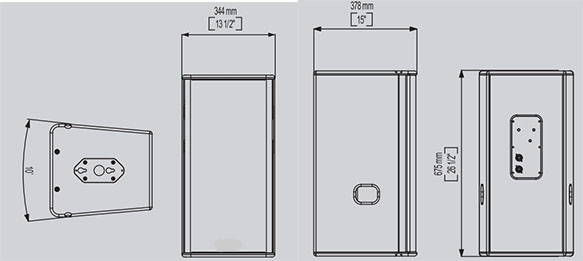

| Dimensions (Wx D x H) | 344 x 675 x 378 mm |
| Enclosure Material | 15mm plywood |
| Net weight | 33kg |
| Input Connectors | Neutrik NL4MPX2 |
Detail picture

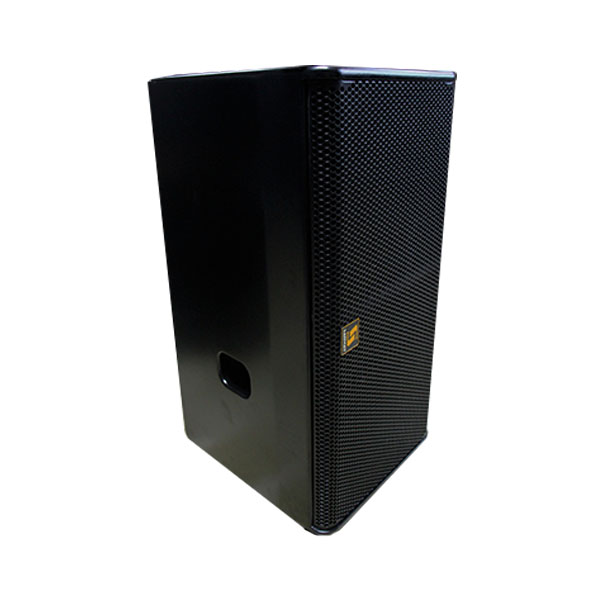

Empty cabinet box
Description
GEO S1210A is a scalable highoutput line array speaker sound box. With a narrow Q value of the point sound source speaker, the use of patented HRW hyperbolic reflection wave source technology, can put many units GEO S1210 speakers into a line array. GEO S1210's beautiful and ergonomic design is for all the strong sound of the application, its design can be used for fixed installation and mobile performances, it is the high cost efficiency of the strong sound system. The powered version is mounted one Sanway customized amplifier module D2L-TWO, which is 2x500w at 8ohms ; 2x900w at 4ohms 2 channel plate amplifier with DSP function, and could power 2 bi-amped speakers.
Application
Specification
| Model | GEO S1210A |
| Drivers | HF: 1x 3” voice coil LF: 1x 12”neodymium driver |
| Frequency Response (±3 dB) | 53 Hz - 19 kHz |
| Sensitivity (1w/1m) | 97dB SPL |
| Nominal Impedance | LF: 16ohms, HF: 16ohms |
| Power rated(rms) | 750 watts |
| Peak Power handling | 3000 watts |
| Usable range @-6dB | 50Hz – 20kHz |
| Shape | 10° Trapezoid |
| Powered Version | Sanway Customized Powered Module |
| Dimensions (Wx D x H) | 344 x 675 x 378 mm |
| Enclosure Material | 15mm plywood |
| Net weight | 33kg |
| Input Connectors | Neutrik NL4MPX2 |
Detail picture
Empty cabinet box
