HDL20A
Sanway
Dual 10 inch Line Array
powered
Overview

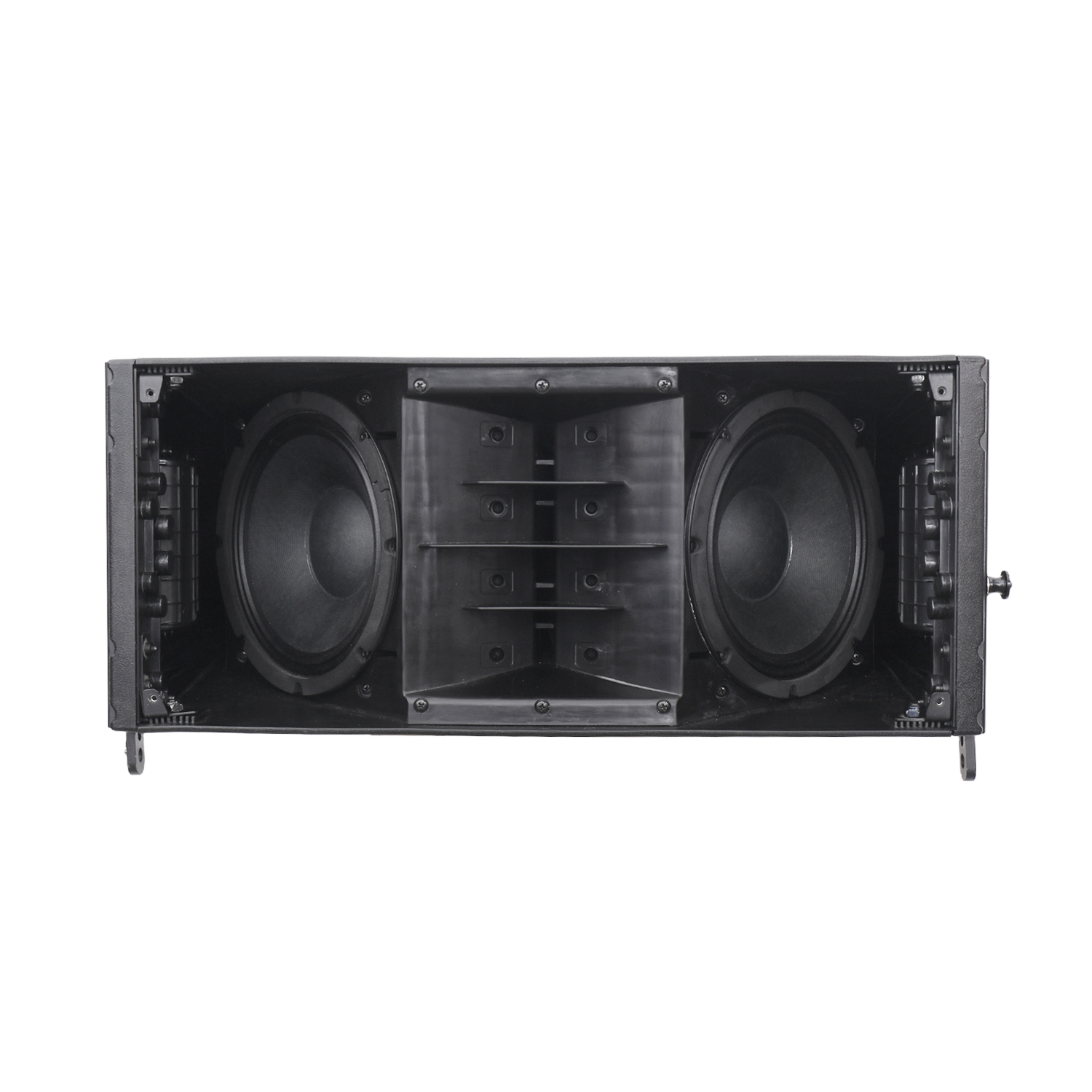

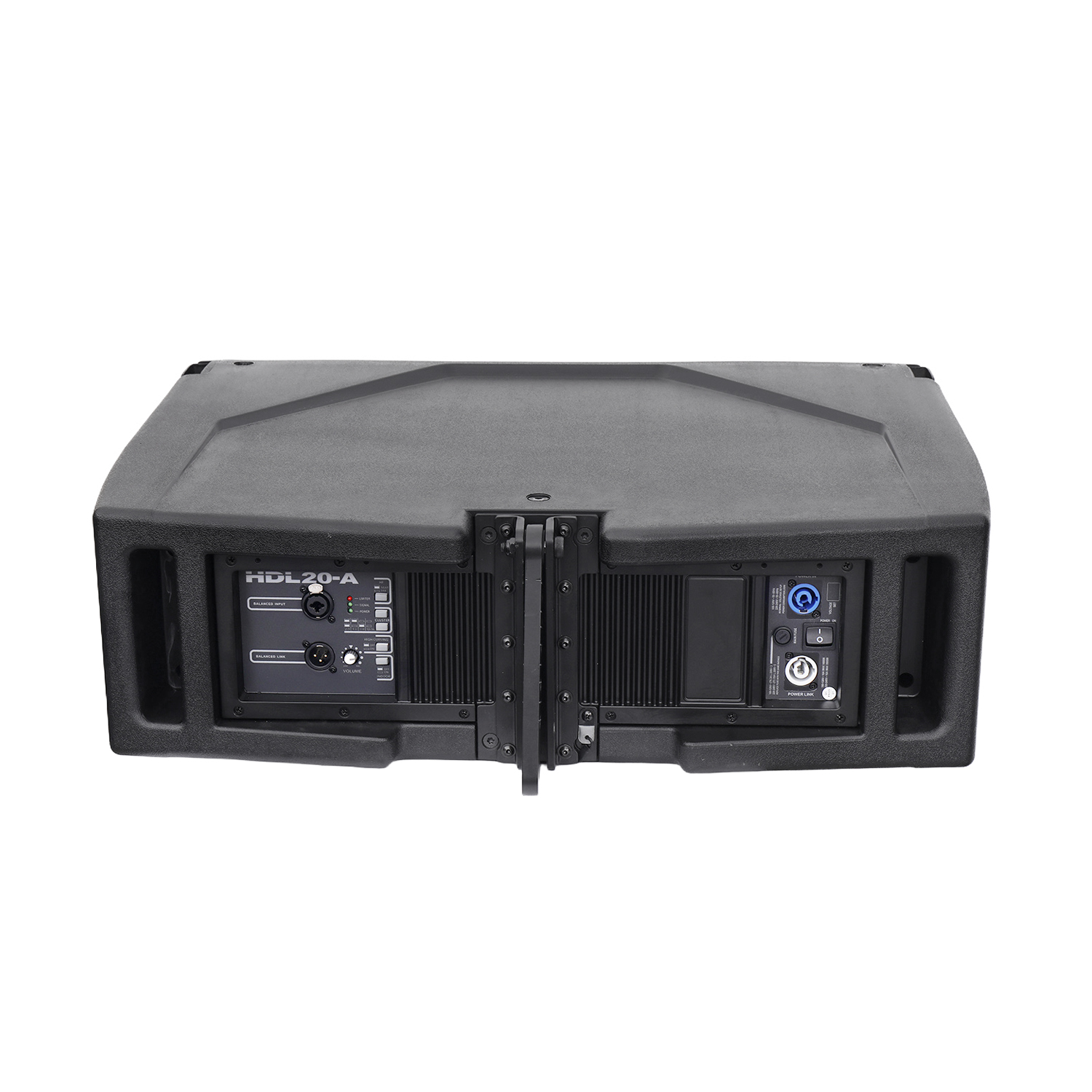

The HDL20A professional audio active line array features 2x10" ferrite woofers and a 1x3" tweeter driver.
The HDL20A active line array sound system is made by first-grade Russian birch plywood, ferrite speaker drivers, and polyurea paint.
The speaker uses Class D amplifier technology to ensure ultra-quiet, high efficiency and low distortion output, and operates in real time according to different environments and musical styles via a fully programmable DSP.
Features
1400 Watt Peak power - 700 Watt RMS
135 dB max SPL
55 Hz - 20k Hz frequency response
2 x 10" LF Woofers
1 x 3" HF Driver
DSP controlled Input section with selectable presets
Russian birch plywood with polyurea finish
Specification of active dual 10 inch line array | |
Model | HDL20A |
Drivers | HF:1 x 3'' |
Frequency range | 55 Hz - 20000 Hz |
Power capacity programm / peak: | 500 / 1000 W LF |
200 / 400W HF | |
Impedance | 8 Ohms LF 8 Ohms HF |
Coverage range (h x v) | 100 ° x 15° |
Sensitivity 1 W / 1 m | - dBu/+4 dBu |
SPLmax / 1 m / peak | 135 dB |
Active module | 2CH DSP class-D digital amplifier |
Dimensions (h x w x d) | 294 x 705 x 445 mm |
Weight | 33kg |
Cabinet | Russian Birch Plywood and Polyurea Paint |
Overview
The HDL20A professional audio active line array features 2x10" ferrite woofers and a 1x3" tweeter driver.
The HDL20A active line array sound system is made by first-grade Russian birch plywood, ferrite speaker drivers, and polyurea paint.
The speaker uses Class D amplifier technology to ensure ultra-quiet, high efficiency and low distortion output, and operates in real time according to different environments and musical styles via a fully programmable DSP.
Features
1400 Watt Peak power - 700 Watt RMS
135 dB max SPL
55 Hz - 20k Hz frequency response
2 x 10" LF Woofers
1 x 3" HF Driver
DSP controlled Input section with selectable presets
Russian birch plywood with polyurea finish
Specification of active dual 10 inch line array | |
Model | HDL20A |
Drivers | HF:1 x 3'' |
Frequency range | 55 Hz - 20000 Hz |
Power capacity programm / peak: | 500 / 1000 W LF |
200 / 400W HF | |
Impedance | 8 Ohms LF 8 Ohms HF |
Coverage range (h x v) | 100 ° x 15° |
Sensitivity 1 W / 1 m | - dBu/+4 dBu |
SPLmax / 1 m / peak | 135 dB |
Active module | 2CH DSP class-D digital amplifier |
Dimensions (h x w x d) | 294 x 705 x 445 mm |
Weight | 33kg |
Cabinet | Russian Birch Plywood and Polyurea Paint |
